Featured Engine-Driven Welding Generators
Explore our top-tier range of dual-voltage, high-duty-cycle welding generator combo units. Engineered in China for extreme site conditions, pipeline fabrication, emergency power, and remote industrial applications.

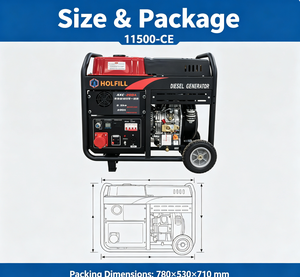

8.5KW Diesel Generator Welder 200A Arc Welder Dual Voltage 230V 400V 195F Engine
- Engine: Commercial-grade 195F Air-Cooled Diesel
- Welding Output: 200A DC Constant Current SMAW
- Auxiliary AC Power: 8.5KW (230V / 400V Dual Voltage)
- Duty Cycle: 60% @ 200A Continuous Duty

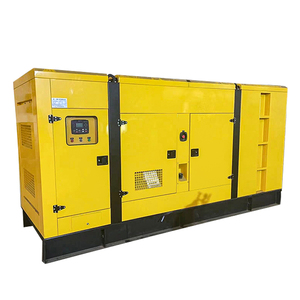

Shangchai 400Kva Diesel Generator With Auto Start (100Kva–500Kva Range)
- Prime Engine: Industrial Shangchai Water-Cooled Engine
- Power Output: 100 kVA to 500 kVA Modular Range
- Integrated Welder: Multi-operator 400A Welding Module
- Control System: Smart ATS Auto-Start & Digital Telematics

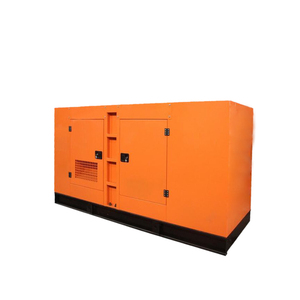

Yuchai 2000Kva–3000Kva Silent Diesel Welder Generator 1800 RPM Water-Cooled
- Engine Brand: Yuchai Heavy Machinery Diesel
- Speed & Cooling: 1800 RPM Water-Cooled Radiator
- Start System: Heavy-Duty 24V DC Electric Starter
- Enclosure: Super Silent Soundproof & Weatherproof Canopy

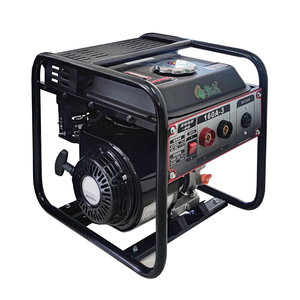

Compact 1KW Gasoline Welding Generator Portable Recoil Start Machine
- Fuel Type: Economy Gasoline / Petrol Engine
- Power Output: 1.0 kW Continuous AC Output
- Starting Method: Ergonomic Manual Recoil Pull Start
- Best For: Light Maintenance, DIY & Mobile Field Repairs

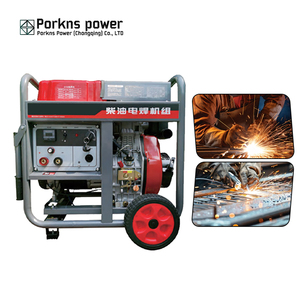

Porkns Power 50A–210A 3–5KW Super Silent Welder Generator with ATS
- Current Range: 50A – 210A Smooth Arc Current
- AC Output: 3kW – 5kW Clean Waveform Output
- Fuel Flexibility: Petrol / Gasoline / Diesel Options
- Features: ATS Ready, 50Hz Stable Frequency, Low Noise

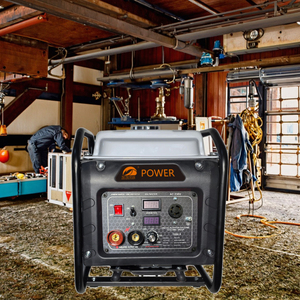

7.5HP Heavy-Duty Portable Gasoline Arc Welding Machine Generator
- Engine Capacity: 7.5 HP 4-Stroke Commercial Overhead Valve
- Process Support: Heavy Stick / SMAW Arc Welding
- Design: All-in-One Tubular Steel Protective Roll Cage
- Target Jobs: Remote Civil Works, Farm Repair, Construction

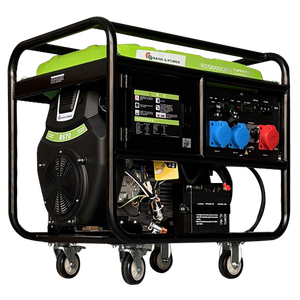

RAISE G POWER 5kW 220A Electric Start Portable Welding Generator
- Amperage Rating: 220A DC Weld Current Output
- AC Power Output: 5.0 kW Continuous Auxiliary Output
- Starting Engine: 4-Stroke Air-Cooled with Keyed Electric Start
- Functionality: Simultaneous Welding & Auxiliary Power
Portable Air-Cooled Silent Diesel Welder Generator (5kw / 6kw / 8kw / 10kw)
- Power Class: 5kW, 6kW, 8kW, to 10kW Configurable
- Cooling System: Forced Air-Cooled High-Efficiency Fan
- Enclosure Type: Soundproof Acoustic Canopy / Portable Wheels
- Arc Stability: Advanced IGBT Inverter Waveform Regulation
State of the Art: China's Industrial Welding Generator Manufacturing
An engineering analysis of modern engine-driven welding power supplies, dual-output alternator topology, and China's OEM export advantages.
In remote infrastructure development, cross-country oil and gas pipeline construction, structural steel erection, and emergency utility restoration, access to reliable utility grid power is rarely guaranteed. In these demanding operational environments, the engine-driven welding generator serves as the cornerstone of field fabrication. Combining an internal combustion engine (gasoline or heavy-duty diesel) with a high-efficiency electrical alternator and dedicated welding rectifier/inverter circuitry, these dual-purpose machines deliver both precise welding arc energy and clean auxiliary AC power on a single mobile platform.
Over the past two decades, China has evolved into the world's primary manufacturing powerhouse for engine-driven welding equipment. Leading Chinese manufacturers have transitioned from producing basic mechanical transformer-rectifier units to pioneering advanced IGBT (Insulated Gate Bipolar Transistor) digital inverter welding generators powered by globally recognized heavy-duty engine architectures—including Shangchai, Yuchai, Cummins-licensed, and precision 195F/186F air-cooled engines. By integrating automated robotic winding, automated dynamic balancing of alternators, and rigorous thermostatic chamber load testing, top Chinese suppliers deliver industrial-grade reliability at a Total Cost of Ownership (TCO) that outperforms Western legacy brands by 30% to 45%.
According to the latest Search Quality Rater Guidelines for technical B2B procurement, evaluating a qualified Chinese welding generator manufacturer requires deep inspection of their engineering credentials:
- Alternator Insulation Class & Copper Purity: Top-tier Chinese manufacturers utilize 100% oxygen-free electrolytic copper windings insulated to Class H or Class F standards (capable of withstanding operating temperatures up to 180°C without thermal degradation).
- Dual-Output Isolated Circuits: Advanced dual-rotor and dual-winding alternators allow simultaneous high-amperage welding (e.g., 200A–500A SMAW/GMAW) and clean AC auxiliary power generation (e.g., 5kW–10kW at < 3% Total Harmonic Distortion) without arc instability or voltage sagging.
- Global Emission & Safety Certification: Leading export-oriented factories comply with ISO9001:2015 quality management systems, CE directives, EPA Tier 4 Final, and Euro V emission standards, ensuring seamless integration into North American, European, and Australian job sites.
Why Top Global Procurement Teams Source from Lead Chinese Factories
Direct factory engineering, strict quality control protocols, and modular customization tailored for extreme operating environments.
Full-Load Factory Testing
Every unit undergoes a minimum 2-hour continuous resistive load bench test at rated current and maximum auxiliary output. Voltage stability, ripple ratio, temperature rise, and fuel consumption are logged against individual serial numbers for complete traceability.
Advanced IGBT Inverter Waveshaping
By replacing legacy magnetic amplifiers with high-frequency IGBT inverter modules operating at 20 kHz to 50 kHz, modern Chinese welder generators achieve instantaneous arc force control, minimal spatter, and ultra-smooth puddle fluidic dynamics for 6010, 7018, and cellulosic electrodes.
All-Weather Canopy Architecture
Heavy-gauge cold-rolled galvanized steel enclosures with electrostatic polyester powder coating provide IP23/IP24 ingress protection. Soundproof sound-dampening foam reduces noise emissions down to 65 dBA @ 7m, perfect for urban construction and night maintenance.
Multi-Process Versatility
Engineered for versatility, premium models support Stick (SMAW), TIG (GTAW with Lift Arc), MIG/Flux-Cored (GMAW/FCAW), and Air Carbon Arc Gouging (CAG-A) up to 8mm carbons, eliminating the need to haul separate machines to remote sites.
Clean Power Output (<3% THD)
Featuring automatic voltage regulators (AVR) and digital frequency stabilization, the AC generator section delivers utility-grade sine wave power suitable for sensitive diagnostic equipment, power tools, plasma cutters, and site lighting simultaneously.
Global Spare Parts & Support
Direct manufacturer backup with complete spare parts availability (engine rebuild kits, AVR boards, IGBT modules, control panels). Every unit ships with standardized wiring schematics and international express service support.
Product Development Trends & Future Sourcing Outlook (2025–2030)
Key technological shifts shaping the next generation of engine-driven welding generators and global supply chain strategies.
1. Transition to Hybrid Diesel-Battery & Variable Speed Generator Architecture
Traditional welding generators run at fixed engine speeds (e.g., 3000 RPM or 3600 RPM for 2-pole alternators; 1500 RPM or 1800 RPM for 4-pole alternators) regardless of whether the operator is actively striking an arc or idling between welds. This results in unnecessary fuel consumption, higher acoustic emissions, and accelerated engine wear.
The industry's leading Chinese manufacturers are rapidly adopting smart variable-speed auto-idle engines combined with lithium-ion buffer battery banks. Under light auxiliary load or idle conditions, the engine speed drops down to 1500 RPM, reducing fuel consumption by up to 35%. When the welder strikes an arc, digital sensors signal the governor to ramp up throttle response within milliseconds, maintaining flawless arc stability while minimizing environmental impact.
2. Smart Telematics & Cloud IoT Monitoring for Equipment Fleets
For major rental companies, cross-country pipeline contractors, and mining operators, real-time asset visibility is vital. Next-generation welding generators from China now feature integrated 4G/GPS IoT controllers. Fleet managers can remotely monitor critical parameters including:
- Real-time engine hours, fuel level, oil pressure, and coolant temperature.
- Arc-on time vs. engine idle time to calculate true job-site productivity.
- Geo-fencing alerts, automated maintenance scheduling, and remote fault diagnostic codes.
3. Stringent Environmental Compliance (Euro V / EPA Tier 4 Final)
Environmental regulations in North America, Europe, and Asia-Pacific mandate significant reductions in nitrogen oxides (NOx) and particulate matter (PM). Chinese diesel welder manufacturers have updated their heavy-capacity generator lines with Common Rail Direct Injection (CRDI) systems, Diesel Particulate Filters (DPF), and Selective Catalytic Reduction (SCR) post-treatment modules, allowing global contractors to meet strict municipal emissions limits.
Technical Comparison & Sourcing Selection Matrix
Compare core parameters across standard Chinese welding generator categories to match your specific field requirements.
| Equipment Category | Fuel / Engine Type | Weld Output (A) | Auxiliary AC Power | Duty Cycle @ 40°C | Primary Industrial Applications |
|---|---|---|---|---|---|
| Portable Gasoline Welder | Air-Cooled Petrol (7.5HP–15HP) | 50A – 220A DC | 1.0 kW – 5.0 kW | 50% – 60% | Light structural maintenance, emergency repair, mobile service vans |
| Compact Diesel Combo | Air-Cooled 195F/186FA Diesel | 160A – 250A DC | 5.0 kW – 8.5 kW | 60% Continuous | Civil works, farm maintenance, off-grid residential & tool power |
| Industrial Silent Diesel | Water-Cooled 4-Cyl Diesel (Shangchai/Yuchai) | 300A – 500A DC | 10.0 kW – 50.0 kW | 80% – 100% Heavy Duty | Pipeline welding, structural steel erection, multi-operator shipyards |
| High-KVA Utility Powerhouse | Heavy Duty Water-Cooled (100–500 kVA) | Multi-Operator (400A x 2+) | 100 kVA – 500 kVA | 100% Continuous | Mining camps, major infrastructure sites, prime grid backup + fabrication |
Welding Generator Sourcing & Engineering FAQ
Expert answers to common technical and commercial queries raised by global procurement officers and project engineers.
What is the difference between an inverter welding generator and a conventional transformer welder generator?
Can I run power tools or sensitive electronics while actively welding?
How does ambient temperature and altitude affect welding generator performance?
What welding electrode types are compatible with Chinese diesel welding generators?
What is the typical lead time and OEM customization capability for bulk orders?
How are warranty claims and spare parts handled for overseas shipments?
Engineered for Reliability. Built for the Field.
Whether you need compact portable petrol welders for field maintenance or heavy-duty 500kVA silent diesel powerhouses for pipeline projects, our factory engineers are ready to deliver custom technical quotes and factory-direct pricing.
